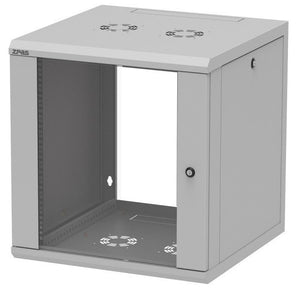

6U Z-CUBE CABINET W 600 x D 450 x H 366mm

ZPAS Z-CUBE 19’’ SINGLE- SECTION WALL MOUNTING CABINET WITH REMOVABLE SIDE PANELS

Designed for indoor applications.
Available in two depths (450 and 600 mm) and six usable heights (from 6 to 21 U).
The cabinet 450 mm deep can be equipped with an additional body, fixed to its rear wall

with two or three hinges and a lock. This creates a double-section cabinet 600 mm deep.

The design of the cabinet is based on a welded body, glass or metal front door and two

removable side panels.

The cabinet is equipped with two adjustable 19" mounting angles with depth regulation.
Top and bottom plates have cable openings covered with knock-out blanking plates and

venting grids with holes for fan assembling.

Door and side panels can be installed without tools.
It is possible to change door opening direction and opening of the additional rear body

direction.

ENCLOSURE WALLMOUNT 19'' 6U 366x600x600 GREY ZPAS
