HDMI EXTENDER CAT 5e/6 KVM HDMI+USB 200M MKC
HDMI EXTENDER CAT 5e/6 KVM HDMI+USB 200M MKC

HDMI EXTENDER CAT 5e/6 KVM HDMI+USB 200M MKC

Code 27.1045
Tax included. Shipping calculated at checkout.
Only 10 left! - Call to confirm availability

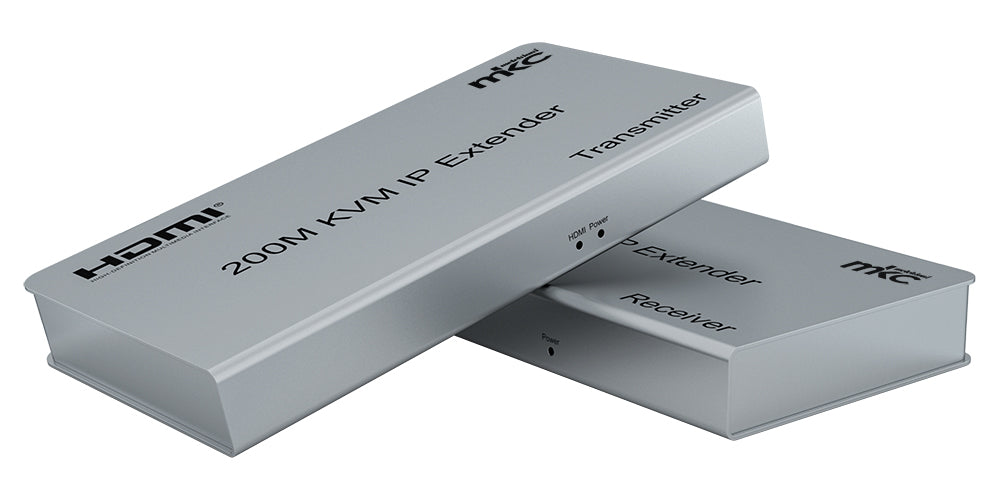

HDMI EXTENDER VIA CABLE CAT5/6 200M KVM HDMI + USB

The MKES29 HDMI extender, over LAN cable and existing LAN infrastructure, up to 200 meters, can transmit Full HD high-definition video from DVD players, players, PCs, and other devices via CAT5e/6 cable (recommended), a maximum distance of up to 200 meters, and 1080p 60Hz support. Thanks to IP signal encapsulation and the resulting ability to integrate it with existing network switches for Ethernet signal distribution, without the need to dedicate a UTP/FTP cable to the exclusive connection between the receiver and transmitter, it is possible to transmit the HDMI audio and video source in various modes: point-to-point, single point-to-multipoint, and cascade connection modes. It can be used in conference rooms, squares, stations, school and corporate training, and HD signal distribution in home and professional installations. Furthermore, it is possible to connect multiple receivers in cascade to a single transmitter. Each receiver is supported by an IR extender for controlling the source via remote control. Mouse and keyboard support for remote source management.
Characteristics
•     Signal encapsulation in IP packets
•     Possibility of installation on existing IT network infrastructures

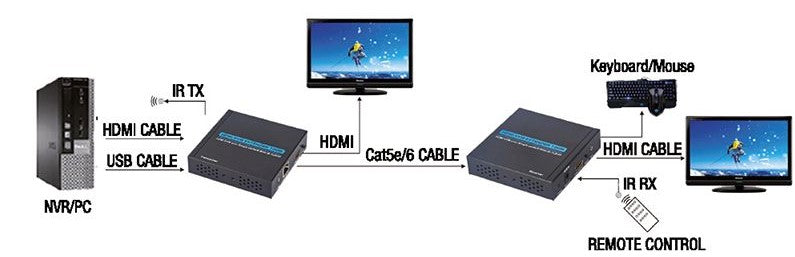

•     Connection mode: point-to-point or point-to-multipoint in cascade with multiple receivers
•     Mouse and keyboard support for remote source management
•     Unidirectional IR extender support: 38KHz; NEC
•     Minimal design, completely plug and play
•     Ethernet Standard: 802.3.
•     HDMI version: 1.4b
•     HDCP:1.4
•     Decoding mode: MJPEG
•     Supported resolution: up to 1080p/60Hz (480p, 720p, 1080p)
•     Audio, sampling rate: 32kHz, 44.1kHz and 48kHz code
•     Maximum working current: TX 600mA - RX 600mA
•     Maximum power consumption: TX 3W - RX 3W
•     Dimensions (WxDxH): 163×87×24mm
•     Weight: TX: 474g - RX: 474g
•     Power adapter format: AC input (50Hz, 60Hz) 100V-240V; output: DC5V/1A
•     Working temperature / humidity: 0℃～45℃ / 10% - 80% RH (non-condensing)
•     Storage temperature / humidity: -10 ℃ ～ 70 ℃ / 5% - 90% (non-condensing)
Package Contents:
•     1 x Transmitter
•     1 x Receiver
•     2 x 5V/1A power adapters
•     2 x IR cables
•     1 x USB Cable
•     1 x User Manual
