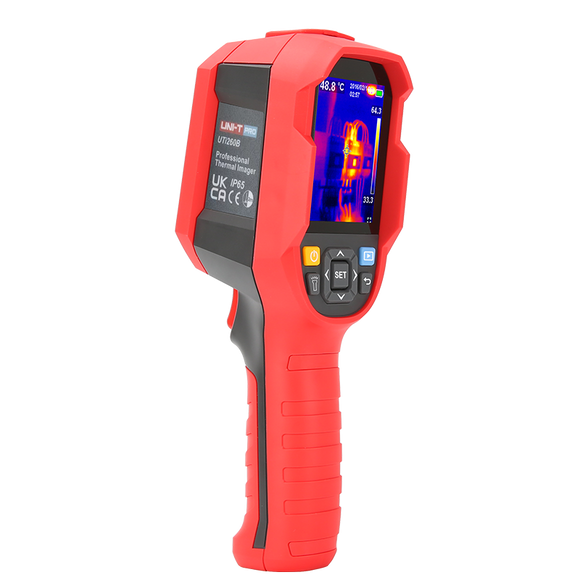

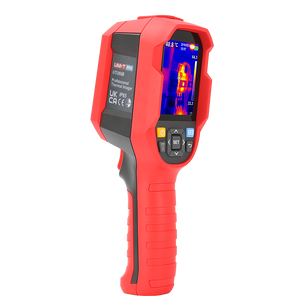

HANDHELD THERMAL CAMERA UTI260B UNI-T
Code 99.6070UTi260B Echo Thermal Imager
Heavy Duty Thermal Camera
UTi260B is a featured product of UNI-T heavy duty series thermal cameras. It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 colour palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.
|
General Characteristics
|
|
|
IR Resolution |
256x192 pixel |
|
Screen Display |
2.8’’ LCD |
|
Field of view (FOV) |
56˚ (H) x 42˚ (V) |
|
Thermal Sensitivity (NETD) |
50mK |
|
Spatial Resolution (IFOV) |
3.8mrad |
|
Frame Rate |
25Hz |
|
Object Temperature Range |
-20˚C ~550˚C |
|
Measurement accuracy |
±2˚C or ±2% whichever is greater |
|
Battery |
Li-ion battery (3.6) 5000mAh |
|
Battery Operating time |
≥ 6 hours |
|
Storage Capacity |
16G Micro SD Card |
|
Communication Interface |
Type-C |
|
Functions |
|
|
Palettes
|
7 (White Hot, Black Hot, Red Hot, Iron Hot, HC Rainbow, Rainbow, Lava) |
|
Emissivity |
0.95 default (0.01~0.99 adjustable) |
|
LED |
√ |
|
Auto Tracking for Lo/Hi temperature |
√ |
|
Alarm
|
√ (Icon/Flashlight) |
|
Software |
Analysis, Real-time Display |
|
Protection |
IP65/2M |
|
Certifications |
CE/ROHS |
|
GENERAL CHARACTERISTICS
|
|
|
Product Colour |
Red and Grey |
|
Product Net Weight |
|
|
Product Size |
236 x 75.5 x 86mm |
|
Standard Accessories |
Micro SD card, Type C USB cable, English manual |
|
|
Specifications are subject to change without further notice |
