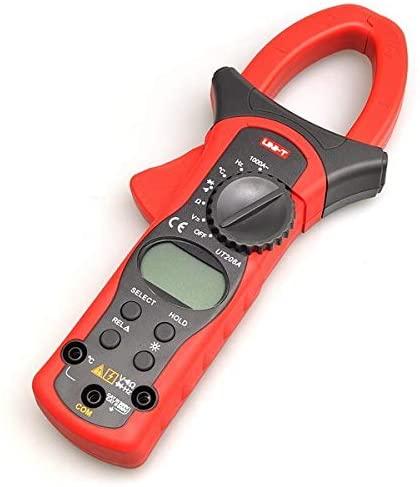

DIGITAL CLAMP METER AC~DCV 1000A AC UT206B UNI-T
Code 99.6170DIGITAL CLAMP METER UT 206 UNI-T
UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, auto scale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating and certified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The UT206B and UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.
• True RMS
• Flashlight
• NCV (audible/visual alarm • Diode/continuity test
• Inrush current
• LPF ACV
• Data hold/backlight • LoZ ACV
• MAX/MIN/relative mode • Optional flex clamp (UT-CS09D) up to 3000A
|
Specifications
|
Range |
BEST ACCURACY
|
|
Certificates |
CE, RoHS |
|
|
AC Current (A) |
1000A |
±(2%+5) |
|
DC Current (A) |
|
|
|
AC Current frequency response |
|
50Hz~60Hz |
|
Inrush current (A) |
1000A |
±(10%+10) |
|
AC Voltage (V) |
1000V |
±(1.2%+3) |
|
DC Voltage (V) |
1000V |
±(0.5%+5) |
|
Low pas filter (LPF ACV) |
1000V |
±(2%+5) |
|
AC voltage frequency response |
|
40Hz-400Hz |
|
LoZ ACV |
1000V |
±(2%+5) |
|
Resistance (Ω) |
60MΩ |
±(1.0%+2) |
|
Capacitance (F) |
60mF |
±(4.0%+20) |
|
Temperature |
-40˚C~1000˚C -40˚F~1832˚F |
±(1.0%+2) ±(1.0%+4) |
|
Low voltage frequency (Hz) |
10Hz~1MHz |
±(0.1%+3) |
|
Duty cycle (%) |
10%~90% |
±(2.6%+7) |
|
Analog bar |
|
31 |
|
Flexible current probe (optional) |
Extends up to 3000A |
√ |
|
Zero mode |
|
√ |
|
Display count |
|
6000 |
|
Jaw opening |
|
42mm |
|
Category rating
|
CAT III 1000V, CAT IV 600V |
|
|
GENERAL CHARACTERISTICS
|
||
|
Power |
1.5V battery (LR6) x 2 |
|
|
LCD Size |
36.5mm x 24mm |
|
|
Product Colour |
Red and Grey |
|
|
Product Net Weight |
248g |
|
|
Product Size |
210mm x 53mm x 35mm |
|
|
Standard Accessories |
Batteries, Test Lead, point contact temperature probe English Manual |
|
|
|
Specifications are subject to change without further notice |
|
