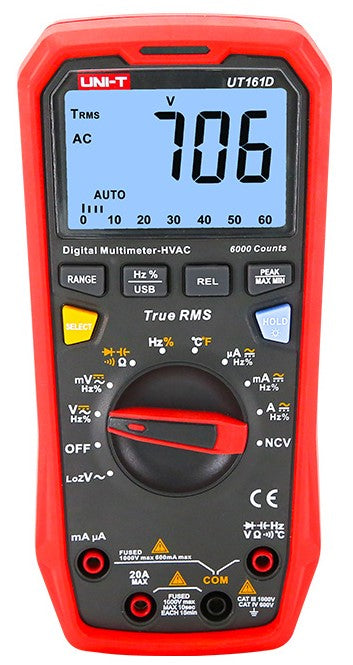

DIGITAL MULTIMETER UT161D TRUE RMS UNT-T

DIGITAL MULTIMETER UT161D TRUE RMS UNT-T

Code 99.6266
  • €89,57
    Unit price per
Tax included. Shipping calculated at checkout.

Only 17 left! - Call to confirm availability

DIGITAL MULTIMETER UT161D TRUE RMS UNT-T





Basic Functions





Measuring Range



Best Accuracy

         UT-161D



Certificates



CE, UKCA, cETLus

DC Voltage (V)

1000V

±(0.5%+3)

AC Voltage (V)

1000V

±(1%+5)

DC Current (A)

20A

±(1%+2)

AC Current (A)

20A

±(1.2%+5)

Resistance (Ω)



60 MΩ ±(1%+2)

Capacitance (F)



60mF ±(3%+5)

Frequency (Hz)



10Hz ±(0.1%+4)

Temperature (˚C/˚F)

-40˚C-1000˚C

±(1%+3)



Special Functions





Display Count



      6000

True RMS



               √

Bandwidth (Hz)



       40Hz ~ 10kHz

Duty Cycle

0.1% ~ 99.9%

±(2%+5)

Diode/continuity test



Auto Power Off

Around 15 Minutes

Continuity Buzzer



Low Battery Indication

≤7.5V



Data Hold/backligth



Relative Mode





Max/Min/Relative mode





Peak Value



USB communication



NCV (audible/visual alarm)



Analogue Bar Graph



31

Input Protection



LPF ACV/ACV+DCV







GENERAL CHARACTERISTICS



Power

1.5V Batteries AAA

LCD Size



Product Colour

Grey-Red

Product Net Weight

350g

Product Size

190mm x 90mm x 50mm

Standard Accessories

Battery, Test Lead, Multi-Purpose Socket, USB Cable, English Manual.



Specifications are subject to change without further notice
