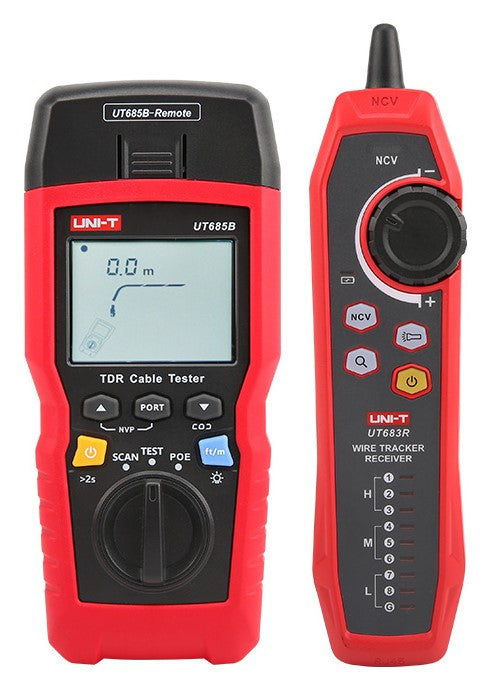

WIRE TRACKER UT685B KIT UNI-T
Code 99.6330UT 685 TDR Cable Tester
UT685B KIT can test various types of cables (including twisted pair cable, coaxial cable, and POE network cable): you can find the cable, detect the cable length, and line sequence, and confirm whether it is POE and POE standards. Plus, it integrated RJ11, RJ45, and coax test ports to support virtually any low-voltage cable testing without needing awkward adapters.
Effectively reduce the operator’s ineffective testing and improve work efficiency, which makes high-quality installations more efficient and easier to troubleshoot.
Features of UT685B KIT TDR Cable Tester
Certifications: CE, UKCA, RoHS
● 2.8 inch backlit LCD display
● Graphical interface
● Cable length test
● Tests RJ11, RJ45 and coaxial cable types
● Identify POE standards
● Digital hunt
● Range 500m
● Resolution 0.33m
● 70V DC input protection
● TDR technology: no blind area testing
|
Specifications
|
Range |
|
|
|
Tested cable type |
Twisted pair cable: 1. UTP (unshielded cable), 2. FTP (aluminium foil shielded cable); 3. SSTP (double shielded network cable); |
||
|
|
Coaxial cable: 50Ω, 75Ω, 93Ω |
|
|
|
Cable length test |
Range: 500 m |
||
|
|
Resolution: 0.33 m |
||
|
|
Accuracy: ± 4% or 0.6 m |
||
|
POE detection |
POE power detection |
||
|
|
POE standard: 802.3AF |
||
|
|
POE standard: 802.3AT |
||
|
Ethernet port test |
√ |
|
|
|
Cable location |
√ |
|
|
|
Port blinks |
√ |
|
|
|
Input protection |
70VDC |
|
|
|
Screen |
2.8″ LCD |
|
|
|
Auto power off |
Around 10 minutes |
|
|
|
|
|
|
|
|
GENERAL CHARACTERISTICS
|
|||
|
Product Colour |
Red and Grey |
||
|
Product Net Weight |
|
||
|
Product Size |
180mm×84mm×37.8mm |
||
|
Standard Accessories |
RJ45 adapting cable: 1 pc; RJ11 adapting cable: 1 pc; RJ11 adapting cable (adapted to alligator clip): 1 pc; Plug, F-connector to F-connector: 1 pc; User manual: 1 pc |
||
